15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
15m Steel Utility Power Pole with 2.75mm Thickness and 850kg Load for Transmission Lines
Βασικές Ιδιότητες
Τόπος καταγωγής:
Jiangsu, Κίνα
Επωνυμία:
MilkyWay
Αριθμός μοντέλου:
χαλύβδινοι ηλεκτρικοί πόλοι, ηλεκτρικός πόλος
Εμπορικά Ακίνητα
Ελάχιστη ποσότητα παραγγελίας:
100
Τιμή:
$99-120
Σύνοψη του προϊόντος
15m Tapered Steel Utility Power Poles 2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN Product Specifications Type Octagonal NGCP 69KV Galvanized electric steel power pole Application Electricity distribution Shape Conoid, Multi-pyramidal, Columniform, ...
Προσαρμοσμένα χαρακτηριστικά προϊόντος
Επισημαίνω
15m Steel Utility Power Pole
,2.75mm Thickness Steel Utility Power Pole
,850kg Load Steel Utility Power Pole
Ονομαστικό ρεύμα:
10-200
Ονομαστική τάση:
10-220
Επιφανειακή επεξεργασία:
Ζεστή γαλβάνωση
Ανεκτικότητα διαστάσεων:
+ - 2%
Πρότυπα συγκόλλησης:
AWS Δ 1,1
Galvanization πρότυπα:
ASTM Α 123
Ικανότητα κατασκευής:
300 κομμάτια ανά ημέρα
Υλικό:
Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Φάσμα ηλεκτρικής ενέργειας:
10 KV ~ 550 KV
Συντελεστής ασφάλειας:
8 για τη διεξαγωγή καλωδίου, 8 για σύρμα γείωσης
Φορτίο σχεδιασμού:
300 ~ 1000 kg εφαρμόζεται στα 50cm από τον κορυφαίο πόλο
Ταχύτητα ανέμου:
160 χλμ./Ώρα (30 m/s)
Ελάχιστη δύναμη παραγωγής:
MPA 355
Ελάχιστη εκτατή δύναμη:
MPA 490
Μέγιστη αντοχή σε τράβηγμα:
MPA 620
Περιγραφή προϊόντος
Λεπτομερείς προδιαγραφές και χαρακτηριστικά
15m Tapered Steel Utility Power Poles
2.75mm Thickness | 850kg Load Capacity | 11M 13.5KN | 12.5M 12KN | 12.5M 16KN | 12.5M 24KN
Product Specifications
| Type | Octagonal NGCP 69KV Galvanized electric steel power pole |
|---|---|
| Application | Electricity distribution |
| Shape | Conoid, Multi-pyramidal, Columniform, Polygonal or Conical |
| Material | Q345B/A572 (minimum yield strength ≥345N/mm²), Q235B/A36 (minimum yield strength ≥235N/mm²), Q460, ASTM573 GR65, GR50, SS400, SS490, ST52 |
| Power Rating | 10KV ~550KV |
| Safety Factor | 8 for conducting wire, 8 for grounding wire |
| Design Load | 300~1000kg applied to 50cm from top pole |
| Surface Treatment | Hot dip galvanized (ASTM A 123) or color polyester powder coating |
| Wind Resistance | 160 km/hour (30 m/s) |
| Standards | ISO 9001 |
Production Process
As a BV, ISO, SGS approved supplier in China with over 20 years of experience, we guarantee high-quality steel poles manufactured from qualified materials by professional workers using advanced equipment.
Raw material test → Cutting → Molding/Bending → Welding (longitudinal) → Dimension verification → Flange welding → Hole drilling → Calibration → Deburring → Galvanization/Powder coating/Painting → Recalibration → Threading → Packaging
Material Quality Assurance
All materials are sourced from reputable mill factories. Each shipment includes a mill certificate with stamp and signature. Materials undergo chemical and physical analysis before production to verify strength and composition.
Certifications
Project Examples
Ordering Information
- Price Terms: EXW, FOB, CFR, CIF
- MOQ: 1 set for customized orders
- Payment: 30% deposit by T/T, balance before shipment
- Delivery: Ready within 10 working days after deposit
- Warranty: 30 years
- Surface Treatment: Hot dip galvanization standard
Our Services
Pre-Sales Service
- Inquiry and consulting support
- 24-hour response time
- Factory visits available
After-Sales Service
- Installation training
- Inspection reports and material certificates provided

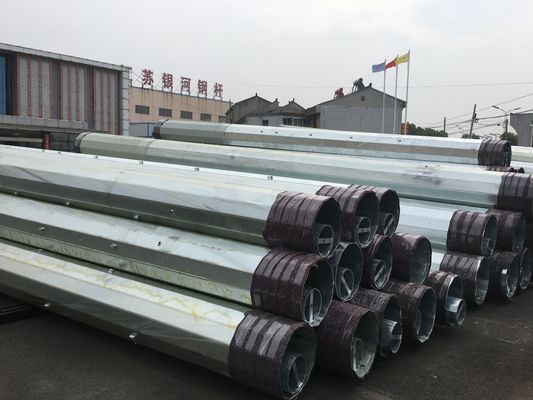

Packaging & Shipping
| Type | Quantity |
|---|---|
| 40&45FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
| 35FT Electric poles for Philippine Market | 26 Tons/40HQ Containers |
About Our Company
Established in 1991, Jiangsu Milky Way Steel Poles is located in Wuxi, near Shanghai Port. Our products are widely used in power transmission, signal transmission, and street/road lighting applications. With export experience since 1991, our poles have been delivered to over 70 countries including USA, Australia, Russia, Germany, Spain, Philippines, and Malaysia.
